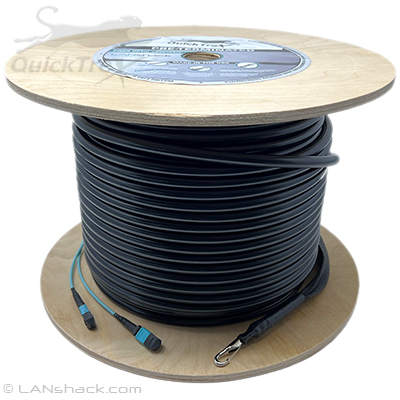

QuickTreX® MTP® Premium Trunk Assemblies are built custom for your critical network. We start with genuine MTP® connectors from US Conec® and precision terminate them to genuine Corning Clearcurve® OM3 Laser optimized fiber. Our MTP® termination process delivers uniform height and positioning for maximum physical contact, consistently low insertion loss, and excellent return loss characteristics across the entire 12 fiber interface. These ruggedized assemblies transition to 2mm sequentially numerically labeled buffer tubes and simplex connectors (to your choosing). Our assemblies are proudly made in the USA by highly trained technicians. We have strict quality control measures in place so you can be certain your assembly will work perfect once installed.

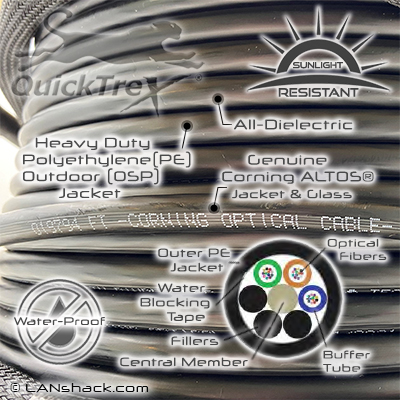

Our outdoor assemblies are rated for almost all outdoor applications. This cable is suitable for underground installation inside conduit and pathways that are subjected to wide temperature variations or water infiltration, overhead lashed to a guide wire, or secured to a building or other permanent outdoor structure. The heavy duty polyethylene jacket is also UV rated so it can be exposed outdoors where there is no threat of rodent damage or blunt force damage.
Typical Applications Include:
- Conduit installations between buildings with wide temperature variations or water infiltration
- Campus Backbones
- Lashed Aerial
- UV Rated Polyethylene Jacket Rugged Jacket for Outdoor Use
- All-dielectric gel-free cable construction requires no bonding or grounding
- Fully waterblocked using craft-friendly, water-swellable materials
- Excellent choice for towers, wind farm and other industrial applications
Features:
- Genuine US Conec MTP Connectors
- Genuine Corning Glass
- Consistent Super Low Insertion and Return Loss
- Polished & Tested in Accordance with ECI Standards & Specs

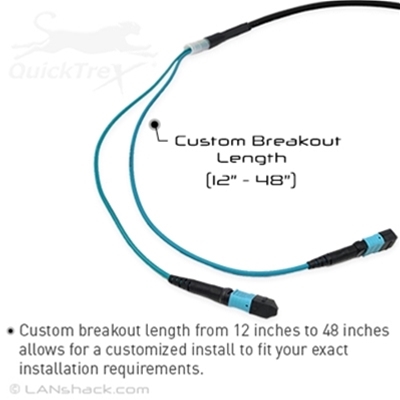

- 2mm Labeled Furcation Tubing on Breakout Strands
- Staggard Connectors for Easy Installation
- All Breakouts & Strands are Sequentially Labeled

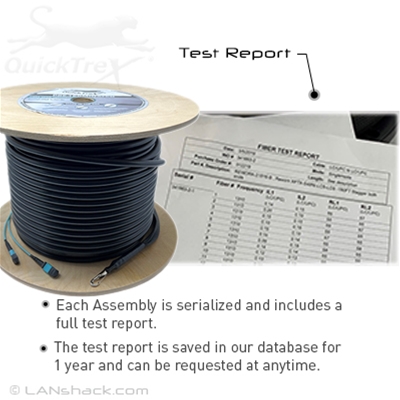

- Includes Full Test Report
- Optional Heavy Duty Swiveling Pulling Eye
- Made in the USA
- Strict Quality Control
- Fast Production Times
- RoHS compliant
- ISO 9001 Certified Manufacturing
This 24 Fiber cable assembly will have one two 12 Fiber MTP® Connectors on each.
NOTE: MTP® is a Registered Trademark of US Conec Ltd. Clearcurve® is a Registered Trademark of Corning Corp.
Specifications
Fiber Type
Multimode OM3 50/125 Corning® ClearCurve®
Strand Count
2 x 12
Fiber Core Size
50/125 - 50µm
Wavelength
850/1300nm
Link Length
300 meters (10Gb/s@850nm)
Bandwidth
2000Mhz @ 850nm / km
Max. Attenuation
3.0dB / 1.0km
Jacket Material
Polyethylene (PE)
Flame Rating
N/A
Outer Jacket Color
Black
Strength Member
Dielectric
Furcation Tubing Size
3mm
Furcation Tubing Color
EIA Color Coded or Sequentially Labeled
Breakout Length
Customizable
Connector Options
Male (With Pins) & Female (Without Pins)
Pulling Eye/s
Optional
Length Options
10 - 5000 ft
Storage Temps
-40 °C to +70 °C
Operating Temps
-40 °C to +70 °C
Nominal Outer Diameter
10.5 mm
Weight
0.049 lbs. / ft
Min. Bend Radius / Installation
10.5 cm
Min. Bend Radius / Loading
15.8 cm
Average Insertion Loss
0.3dB
Jacket Rating
Indoor/Outdoor Plenum Rated
Construction
All-Dielectric / Gel-Free
Videos
When You Place An Order
Step 01
Place Your Order
Team processes & forwards to one of our USA production departments.
Step 02
Get Notifications
Receive emails on order status & estimated ship date.
Step 03
Production & Testing
Manufactured in-house with strict quality control.
Step 04
Track Your Order
Get tracking on your shipment until delivery.
Product Reviews (190)
5
5
4
3
2
1
Vytas
First time I've ordered from LANshack, will definitely use them in the future for pre-terminated custom fiber assemblies. Shipped quick and direct to customer.
customer
LANshack really was accommodating and very helpful with my fiber needs. They went to every extent to make sure our network was up and running in no time!
ProductSections
I have used LANshack for custom pre-terminated fiber assemblies for a couple of years now. The quality of the product is top notch. Setting up a new building and ordered this 1200' to connect 2 buildings together. Great termination quality. Zero issues installing and connecting. Connection lit from the start. Thank you very much.
Allen
Whenever we need to install a fiber link from one building to another, we order pre-terminated assemblies from LANshack ! Always done right, very reasonable turn around times. Shipping deals are always a plus.
customer
Great customer service. Products in stock.
Questions & Answers
What is an MTP or MPO trunk cable assembly?
An MTP/MPO trunk assembly is a fiber optic cable that has been terminated with MTP/MPO connecctors. It is designed for high-density, high-speed data transmission in data centers, enterprise networks, and telecom applications.
What is the difference between MPO and MTP?
MPO (Multi-fiber Push-on) is a generic term for multi-fiber connectors, while MTP (Multi-fiber Termination Push-on) is a specific, higher-performance version of MPO designed by US Conec. MTP connectors are designed to offer better mechanical and optical performance than standard MPO connectors.
What is a MTP or MPO connector?
It is a is a Multi-fiber Termination Push-on connector that consists of either 12 or 24 fibers used to connect multiple optical fibers in a compact form factor, ensuring efficient data transmission.
What lengths can I have my MTP trunk made to?
We offer lengths from 1 ft through 5000 ft.
What is a pulling eye?
A pulling eye is an additional attachment that we offer optionally on our MTP trunk assemblies. They are designed to facilitate installation. It provides a sturdy attachment point for your pull string or rope, allowing you to pull the cable through conduits or tight spaces without damaging the connectors or fiber strands. The benefit of using a pulling eye is that it reduces the risk of damage during installation, especially in complex pathways or confined spaces. Our pulling eyes include a swivel buckle that twists during the pull preventing twisting of the cable which can cause damage.
